Willowra School, Shade Structure, Basketball Court and Playground

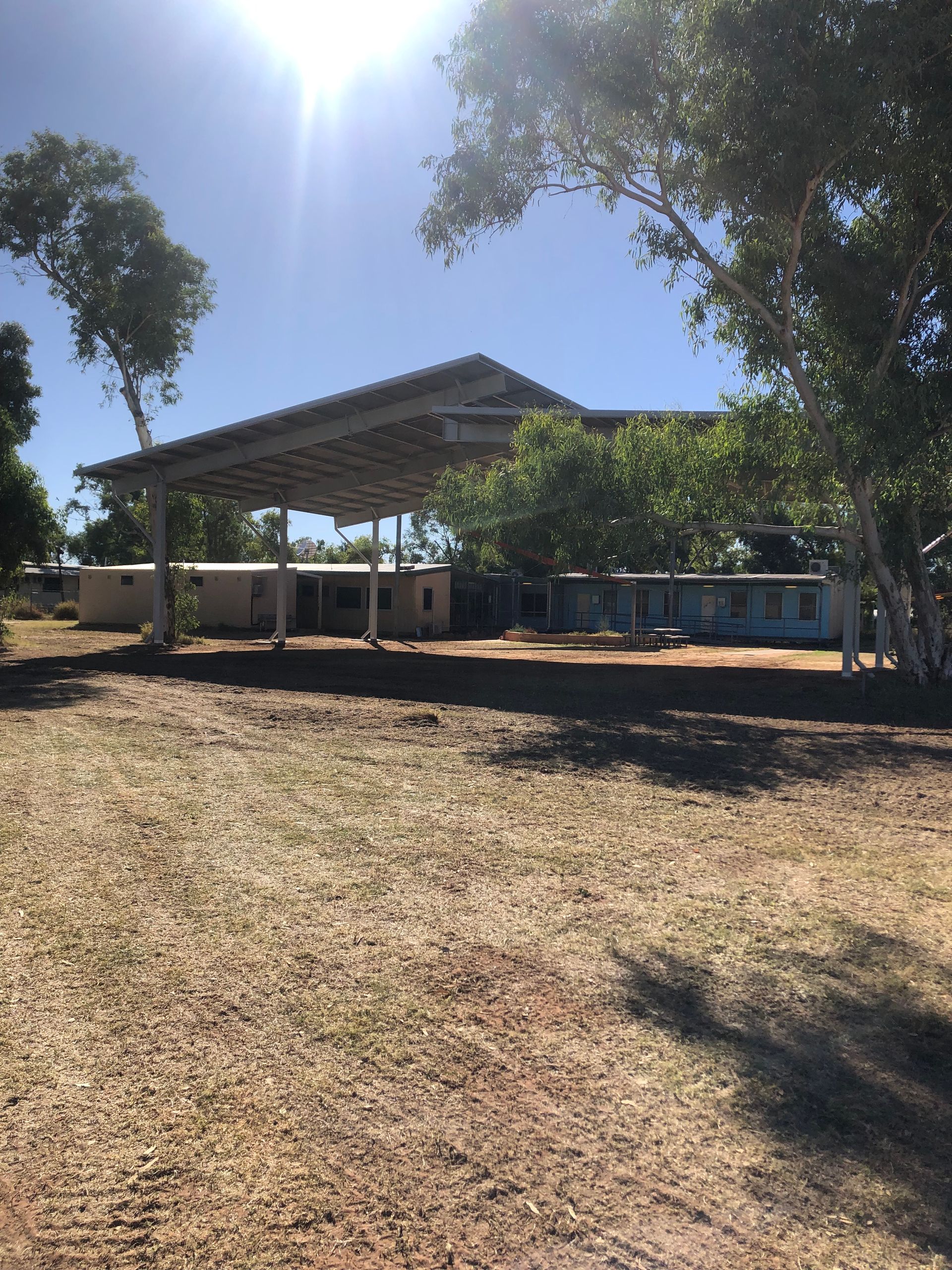

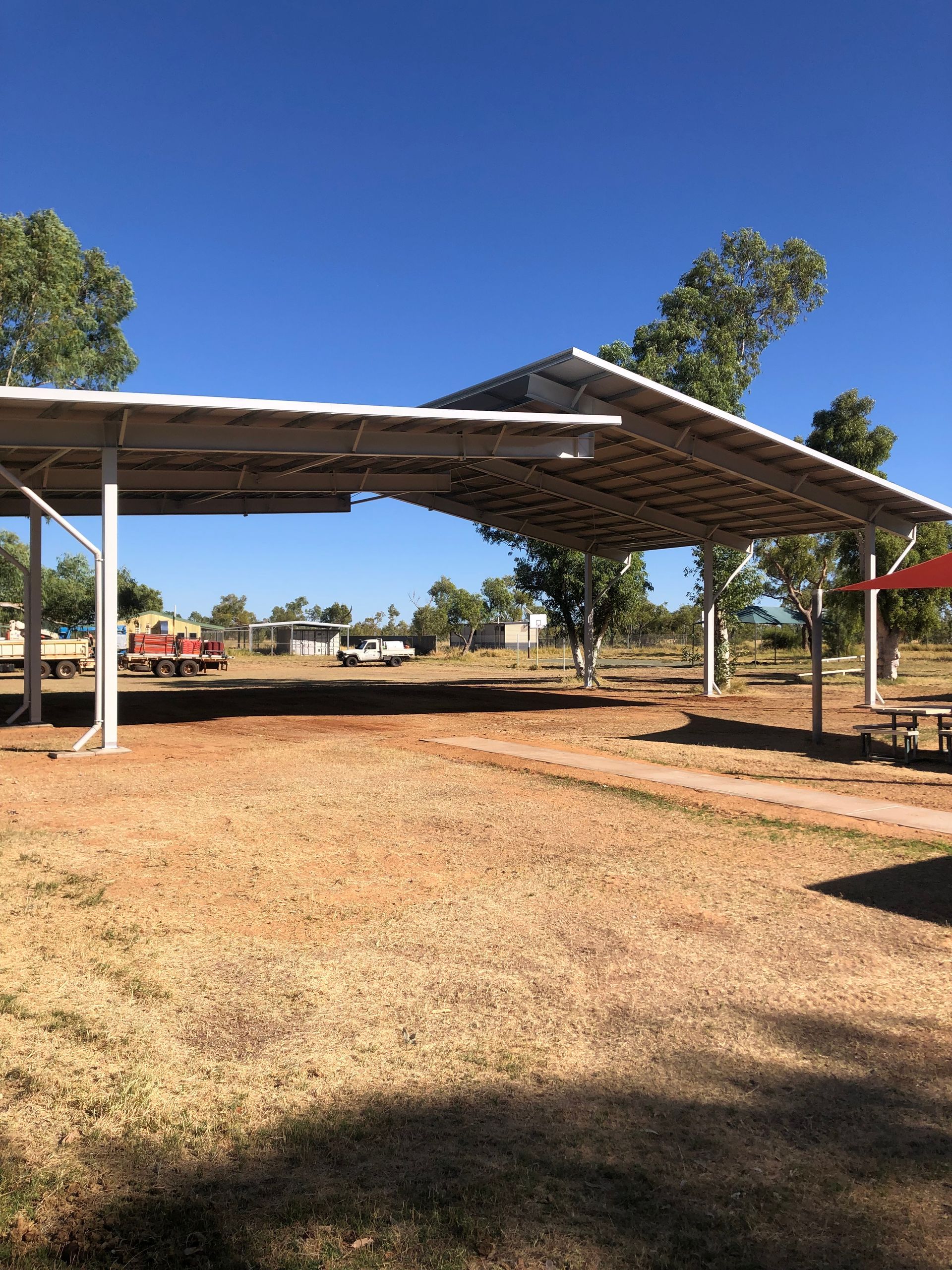

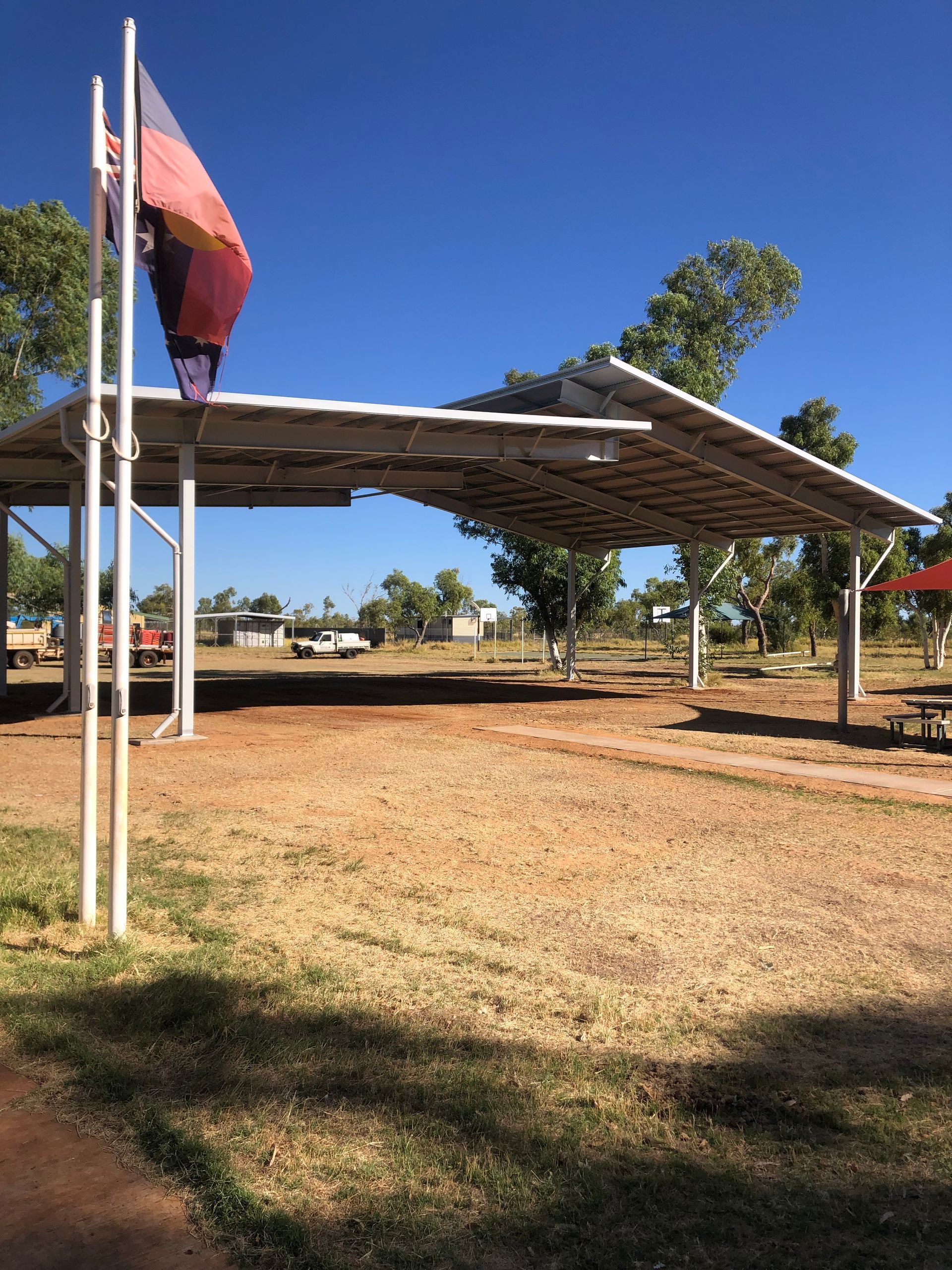

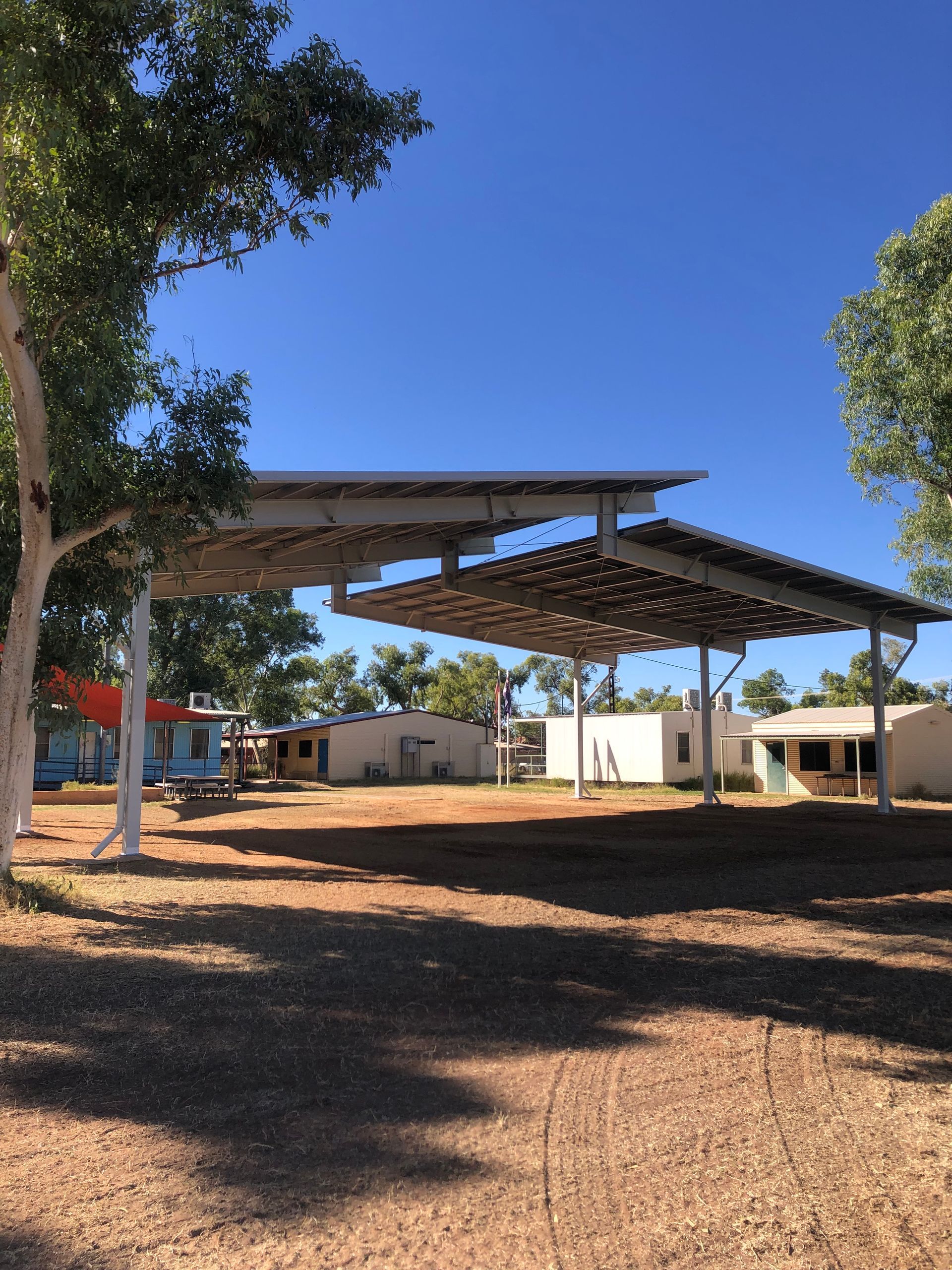

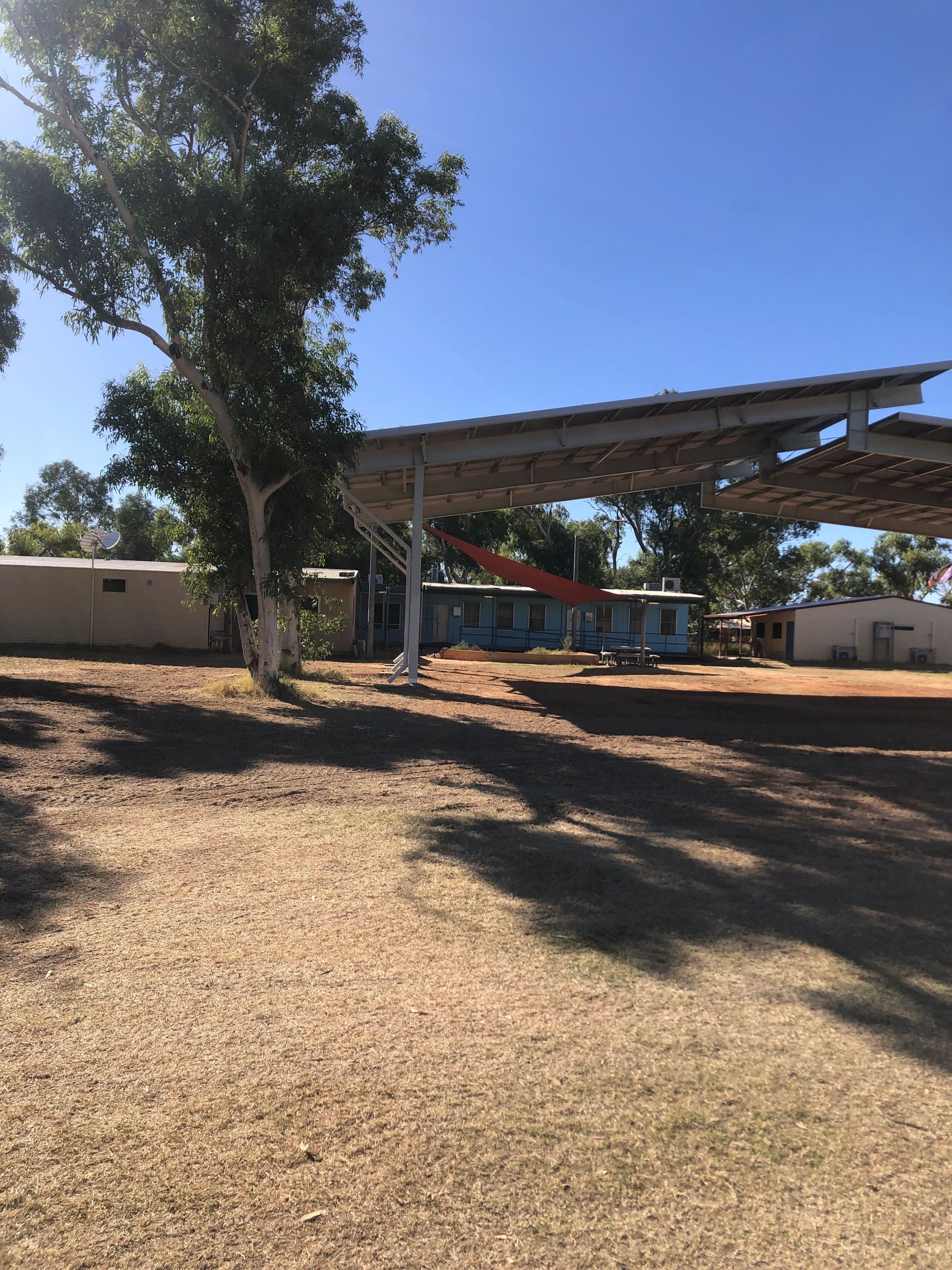

The scope for Willowra School included the construction of a new concrete basketball half court with a shade structure, following design drawings and lowering truss seating to 5000mm for better weather protection.
It required the structural design of the slab, shade structure, and footings. Additionally, the project involved supplying and installing a new playground featuring sand soft fall with rubber edges and a barrier to separate the playground from the court to prevent balls from entering the playground area.
Objective
The primary goals and desired outcomes of the Willowra School project were:
Enhanced Recreational Facilities
To provide students with a new concrete basketball half court and a shaded structure, ensuring a safe and enjoyable outdoor activity space.
Improved Play Area
To supply and install new playground equipment that offered engaging and safe play options.
Safety and Accessibility
To include features such as a barrier to separate the playground from the basketball court, enhancing safety for the children.
Challenges
Remote Location
The project’s remote location posed logistical challenges, including transportation of materials and equipment,
and ensuring timely delivery.
Cultural Sensitivities
Working within a community with unique cultural practices required sensitivity and respect for local traditions and customs.
Technical Limitations
Designing and constructing the basketball half court and shade structure, as well as the playground, required careful planning to meet structural and safety standards.
Coordination with Authorities
Liaising with Power and Water to determine the exact location of a PWC easement and ensuring it was not interfered with added complexity to the project.
Design Approvals
Ensuring all designs were approved by the Principal before commencement required thorough communication and adherence
to specific requirements.
Addressing these challenges was crucial to the successful completion of the project, ensuring it met the client’s goals and provided a safe, functional, and culturally respectful environment for
the students
Approach
BluedustNT tackled the Willowra School project with a comprehensive and strategic approach to meet the client’s needs.
Design and Construction of Basketball Half Court and Shade Structure:
Guided by Design Drawings
Used the provided court design drawings as a reference.
Truss Seating Adjustment
Lowered the truss seating to a nominal height of 5000mm for better weather protection, following DIPL design advice.
Structural Design
Developed the structural design for the slab, shade structure, and footings, including details on depths, reinforcement, and joints.
Supply and Installation of New Playground:
Design Flexibility
Ensured the playground design included elements similar to the Kompan Triple Tower Stairs (PCM310921), as per the school’s preference.
Safety Features
Incorporated sand soft fall with rubber edges and a barrier to separate the playground from the basketball court to prevent balls from entering the play area.
Additional Steps and Considerations:
Shade Structure Design
Provided indicative designs for the shade structure, with adjustments to truss seating height for improved protection.
Approval and Certification
Ensured all designs were approved and certified, obtained necessary building permits,
and coordinated with Power and Water to avoid interference with a PWC easement.
Principal Approval
Secured approval from the Principal for all designs before commencing construction.
By following these strategies and methodologies, BluedustNT effectively addressed the client’s needs, ensuring a successful and well-executed project.
Execution
BluedustNT executed the Willowra School project with a detailed and methodical approach, addressing both creative and technical elements to meet the client’s needs.
Basketball Half Court and Shade Structure:
Design Guidance
Followed the attached court design drawings to ensure accuracy and alignment with the client’s vision.
Truss Seating Adjustment
Lowered the truss seating to a nominal height of 5000mm, as advised by DIPL, to provide better weather protection.
Structural Design
Developed a comprehensive structural design for the slab, shade structure, and footings, detailing depths, reinforcement, and joints.
Playground Installation:
Design Flexibility
Provided playground equipment that matched or was similar to the Kompan Triple Tower Stairs (PCM310921), ensuring the school’s satisfaction.
Safety Measures
Installed sand soft fall with rubber edges and a barrier to separate the playground from the basketball court, enhancing safety.
Additional Execution Details:
Shade Structure Design
Provided indicative designs for the shade structure, with adjustments to the truss seating height for improved protection.
Approval and Certification
Ensured all designs were approved and certified, obtained necessary building permits,
and coordinated with Power and Water to avoid interference with a PWC easement.
Principal Approval
Secured approval from the Principal for all designs before commencing construction.
By meticulously planning and executing each phase of the project, BluedustNT delivered a high-quality, functional, and aesthetically pleasing gable roof shed that met all the client’s needs and expectations.
Outcomes
MEASURABLE ACHIEVEMENTS
Completion of Facilities
Successfully constructed a
new basketball half court with
a shaded structure and installed new playground equipment.
Safety Enhancements
Implemented safety features such as barriers and soft fall surfaces, ensuring a secure environment for students
COMMUNITY IMPACT
Enhanced Recreational Spaces
The new facilities provided students with improved recreational spaces, promoting physical activity and well-being.
Educational Benefits
The potential soundproofing of the classroom aimed to create a better learning environment, contributing to the overall educational experience.
These outcomes highlight the project’s success in achieving its goals and positively impacting the Willowra School community.
